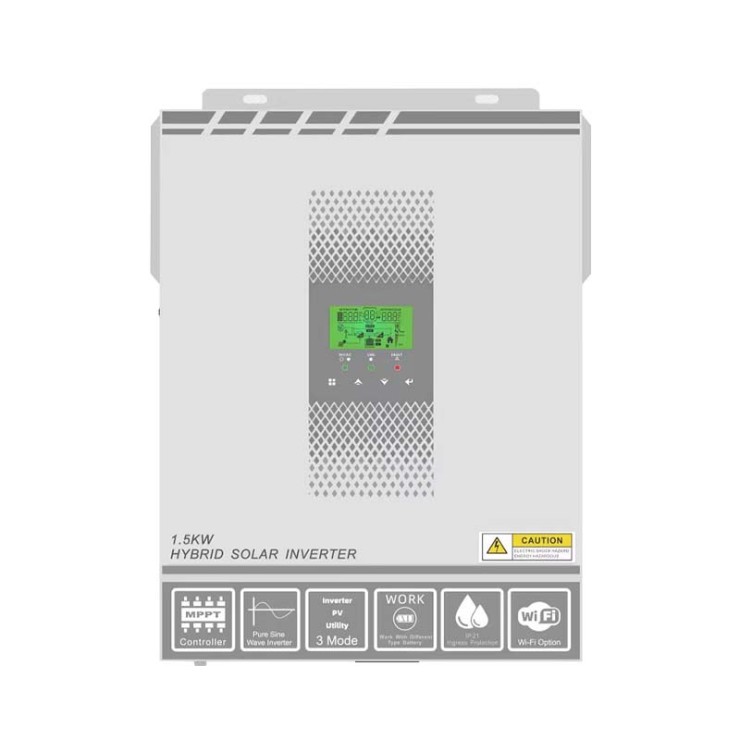

1.5KW/2KVA Solar Hybrid Inverter

The BST-HPL-1500W Hybrid Solar Inverter is a compact and efficient power solution designed for small residential and backup applications. Built with an advanced MPPT solar charge controller, it ensures maximum solar harvesting efficiency while delivering stable pure sine wave output.

This inverter supports solar and AC charging, making it ideal for homes, small offices, shops, and rural electrification projects. With intelligent battery management and multi-layer protection systems, it guarantees safe, reliable, and long-lasting performance.

Key Features

• Built-in high-efficiency MPPT solar charge controller
• Pure sine wave output for sensitive electronics
• 12V battery system compatibility
• Wide PV input range (40–500VDC)
• Dual charging support (Solar + AC grid)
• Fast transfer time (10ms for PCs)
• 98% peak efficiency
• Intelligent LCD display with system monitoring
• Overload, short circuit & over-temperature protection
• Compact wall-mounted design

Technical Specifications

• Model: BST-HPL-1500W
• Rated Power: 1500W
• Battery Voltage: 12VDC
• Output Voltage: 230VAC ±5%
• Waveform: Pure Sine Wave
• PV Voltage Range: 40–500VDC
• Max PV Voltage: 500VDC
• Max Charging Current: 100A
• AC Charging Current: 60A
• Efficiency (Peak): 98%
• Transfer Time: 10ms (PC) / 20ms (Home appliances)
• Operating Temperature: 0°C – 55°C
• Communication: RS232 (Standard)
• Dimensions: 399 × 285 × 118 mm
• Weight: 5.5 kg
